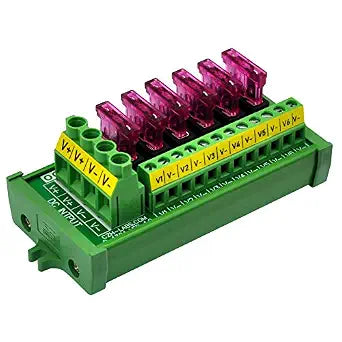

DC Power Fuse Distribution Strip Module (6 Position, Screw Mount)

Working voltage DC 0 to 32V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 3 Amps (Factory-installed fuse value 3 Amps, you can replace the fuse to support up to 10 Amps.) | Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. | Output terminals pitch 5.0mm/0.197", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. | Fuse holders for Medium Blade ATO/ATC Fuse, the fuse can be removed and replaced very easily. With fuse fail indication function, when you connected load and the fuse has blown or has been unplugged, fail indication LED will turn on. | FR-4 fiberglass dual copper layers PCB. Taiwan High quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
