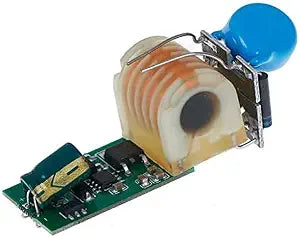

1 Pcs DC 5V-12V 15KV Pulse Arc Boost Coil Board High Voltage Generator Step-up Module Arc Igniter Coil Module

Within 9V can work for a long time continuous arcing for 1 day.When the voltage is longer than 9V, it is necessary to add heat to the fan.5 ~ 12V power supply, available 2-3 18650 battery series power supply, or ordinary router power supply or 9V/12V power supply. | Arc characteristics: white, low temperature 24 hours continuous arc, short / no load can be, high efficiency and low heat circuit design, no radiator!(If the voltage is not enough, up to 4 modules can be connected in parallel, the output terminals can be connected in series, and the arc can be increased by 4 times) | Input voltage: 5V~12V;Input current: 0.2A~0.5A;Output voltage: 5KV~15KV;Pulse capacitance: default 1000pF;Pulse frequency: 3~20 times/second;Arc distance: 1cm~1.5cm. | Voltage Power must be supplied within the nominal voltage range for proper operation! If the voltage is too low, the module will undervoltage and stop working. Never reverse, overpressure, otherwise it will damage the module or even cause the capacitor to explode! | Note: This product is a semi-finished product without a shell. It is recommended that it be potted with paraffin or epoxy to improve durability.This product poses a certain risk to non-professionals and must be operated in strict accordance with the electrical specifications!
